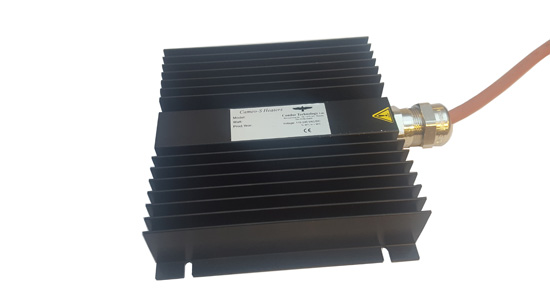

Description
1 Application
Space-heaters for Non-hazardous locations are designed for
- Freeze protection
- Anti-condensation
- Temperature maintenance
2 Features and Advantages
- Self-limiting heating elements
- Small dimensions
- No moving parts, no maintenance required, therefore long lifetime
- Can be used for 110 / 240 VAC/DC
3 Remarks
- All Cameo Space-heaters are designed around self-limiting heating elements. These semi-conductor elements are saving power consumption.
- Our Cameo Space-heaters are designed to heat the air inside an enclosure and indirectly the installed equipment. If properly selected for freeze protection, no thermostat will be needed.
- When required in other applications, e.g. analyzers, it is normal practice to use our Space-Heaters in combination with our Fix-Therm96 thermostats (range from 10 °C up to 135 °C).
- Do not cover the fins to guarantee free convention.
4 Range
| GSP-1A - T3 | ca. 115°C Surface temperature | 250-25 Watt |
| GSP-2A - T4 | ca. 105°C Surface temperature | 250-25 Watt |
| GSP-3A - T4 | ca. 90°C Surface temperature | 250-25 Watt |
| GSP-4A - T4 | ca. 70°C Surface temperature | 250-25 Watt |
| GSP-0AHP - T3 (High power model) | ca. 130°C Surface temperature | 500-50 Watt |
5 Technical Data
| Power consumption | 250-25 Watt or 500-50 Watt |
| Electrical cable | 3 x 1 sqmm |
| Material cable | non-braided silicone cable |
| Standard length | ca. 1 mtr., other lengths optional, on request |
| Other lengths | to be specified |
| Weight | ca. 1600 g. |
| Overall dimensions | 165 x 164 x 56 mm (LxWxH) |
| Material | black anodized aluminium |
| EX protection class | II2G Ex d IIC T3 or T4 : II2D Ex tD A21 IP66 T 135 °C or T200 °C |
| Certification | KEMA 01ATEX2124X and IECEx DEK 11.0017 |
| Protect degree | IP 66 |
| Voltage AC/DC | 110/240 |
| Ambient temp. range | - 60°C+ 90°C |
